The 3030B4 model accelerometer features miniature size, excellent linearity, and good environmental compatibility, including the 3030B5 and 3030B5H models.

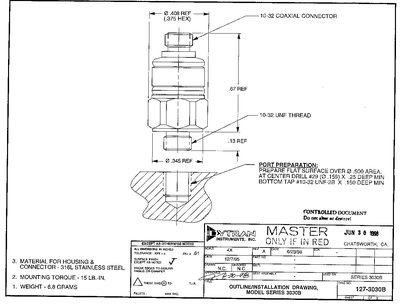

The 3030B series is a miniature IEPE accelerometer designed for high‑frequency vibration measurement. The document provides detailed physical dimensions, mounting provisions, and material specifications for the housing and connector.
Key electrical characteristics such as sensitivity, frequency response, supply current, compliance voltage, and noise floor are listed, along with environmental limits like temperature range, shock, and vibration ratings. Supplied accessories and certification information are also included.
| Weight | 68 grams |
|---|---|
| Size (Hex x Height) | 0.375 x 0.067 inches |
| Maximum Shock | +3000 G peak |
| Temperature Range | ~‑60 °C to 250 °C |
| Output Impedance (typical) | 700 Ω |
| Bias Voltage | 11 VDC |
| Resonant Frequency (nominal) | 30 kHz |
| Equivalent Electrical Noise Floor | 0.0036 g rms |
| Maximum Transverse Sensitivity | 5 % |
| Seal Type | Hermetic welded/glass‑to‑metal |
The accelerometer weighs 68 grams.
It can withstand up to +3000 G peak shock.
It operates from approximately –60 °C up to 250 °C.
