Specifications of 3143D1 triaxial LIVM accelerometer, including physical characteristics, dimensions, connection method, material, performance indicators, environmental characteristics, electrical characteristics
The 3143D1 is a triaxial LIVM accelerometer designed for high‑frequency vibration measurement. It provides four‑pin radially mounted connections, titanium housing, and a hermetic glass‑to‑metal seal for rugged operation.

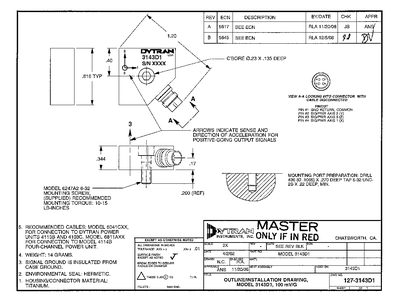

Mounting is achieved with a 6‑32 mounting screw through a drilled hole, and recommended torque is 10‑15 lb‑in. Recommended cables are Model 6041CXX and Model 6247A2 mounting screw. The device outputs a positive‑going signal proportional to acceleration, with a sensitivity of 100 mV/g and a full‑scale range of ±50 g.
| Weight | 14 gram |
|---|---|
| Size (L×W×H) | 82 x 82 x 0.34 inch |
| Housing & Connector Material | Titanium |
| Sensitivity | 100 mV/g |
| Full‑Scale Range | ±50 g |
| Frequency Range | 0.5 to 3000 Hz |
| Resonant Frequency | 25 kHz |
| Maximum Vibration | 600 g pk |
| Maximum Shock | 1500 g pk |
| Operating Temperature Range | -60 to +185 °F |
| Supply Current Range | 2 to 20 mA |
| Compliance Voltage Range | +18 to +30 VDC |
| Output Impedance (typ.) | 100 Ω |
| Bias Voltage (nom.) | +12 V |
| Discharge Time Constant (nom.) | 4 s |
| Output Signal Polarity | positive for acceleration toward top |
| Electrical Isolation | 10 MΩ |
| Recommended Mounting Torque | 10‑15 lb‑in |
The accelerometer weighs 14 grams.
A torque of 10‑15 lb‑inches is recommended.
It operates from –60 °F to +185 °F.
The sensitivity is 100 mV per g.
