This document introduces the 3030B5 series of accelerometers, including model, size, weight, connector, material, performance and other information.

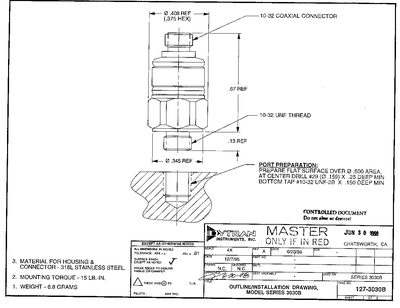

The Dytran 3030B series is a miniature IEPE accelerometer designed for high‑frequency vibration measurement. The datasheet provides physical dimensions, weight, mounting details, and performance parameters such as sensitivity, frequency response, and temperature range.
Electrical characteristics are listed, including supply current, compliance voltage, output impedance, bias voltage, and discharge time constant. Accessories and calibration certification information are also included.
| Weight | 6.8 grams |
|---|---|
| Size (Hex x Height) | 0.375" x 0.067" (9.525 mm x 1.701 mm) |
| Maximum Shock | +3000 g peak |
| Maximum Vibration | +1000 g peak |
| Supply Current Range | 20 mA (typical) |
| Compliance Voltage Range | +18 V to +20 V |
| Output Impedance (typical) | 700 Ω |
| Bias Voltage | 11 V to 17 V DC |
| Discharge Time Constant | 0.11 s to 0.15 s |
The accelerometer weighs 6.8 grams.
The device can withstand up to +3000 g peak shock.
Typical supply current is 20 mA.
