The PDF file provided is the product description of the 4X Instrumentation Company's 3030C1 accelerometer, which introduces the product's model, dimensions, weight, connector type, installation method, working range, sensitivity, frequency response, resonant frequency, linearity, temperature range, thermal sensitivity, capacitance, maximum vibration, and maximum shock.

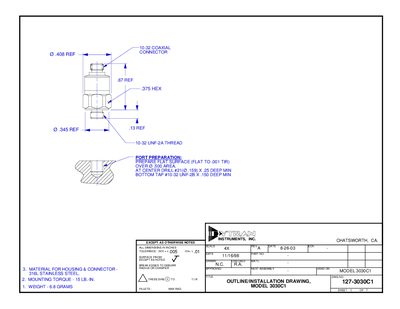

The Dytran 3030C1 is a miniature high‑temperature accelerometer designed for harsh environments. The manual provides dimensions, mounting instructions, connector details, and material specifications for the stainless‑steel housing.
Key specifications include a full‑scale range of ±500 g, sensitivity of 0.40 %/g at 100 Hz, frequency response from 5 Hz to 5 kHz, and a resonant frequency of 30 kHz. The device weighs 6.8 g and features a top‑mounted 10‑32 micro‑coax connector with an integral stud for mounting.
| Full Scale Range | ±500 g |
|---|---|
| Sensitivity @ 100 Hz | 0.40 %/g RMS |
| Frequency Response | 5 Hz to 5 kHz (+5 %) |
| Resonant Frequency | 30 kHz |
| Linearity | +1 % FS |
| Transverse Sensitivity | max 5 % |
| Temperature Range | -100 °F to +500 °F |
| Thermal Coefficient of Sensitivity | 0.01 %/°F |
| Capacitance | 126 pF |
| Maximum Vibration | 1000 g RMS |
| Maximum Shock | 3000 g peak |
| Size (Hex x Height) | 0.375 in × 0.67 in |
| Weight | 6.8 g |
| Connector Type | Top‑mounted 10‑32 micro coax |
| Case Material | 316L stainless steel |
| Seal Type | Welded glass‑to‑metal hermetic |
| Mounting Provision | 10‑32 (UNC‑2A) integral stud |
The device measures up to ±500 g full scale.
It weighs 6.8 grams.
It uses a top‑mounted 10‑32 micro coax connector.
The housing is made of 316L stainless steel.
