This document provides specifications and features of the 1050V series dynamic force sensors, including sensitivity, maximum compression and tension, resolution, etc.

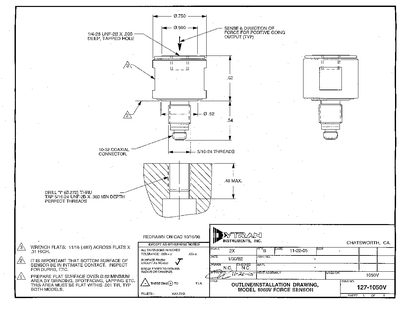

This manual describes the Dytran 1050V series dynamic force sensors, including installation drawings, mounting provisions, and electrical connector details. It covers six model variants (1050V1‑1050V6) with their individual sensitivity, range, and resolution specifications.
Key common specifications are listed, such as a stiffness of 11.4 lb/in, unloaded resonant frequency of 75 kHz, linearity within ±1 %FS, and a maximum shock rating of 10,000 g. The sensors are made of stainless steel, weigh 32 g, and operate from a 2‑20 VDC (or +18‑+30 VDC) supply with a 100 Ω output impedance.
| Stiffness | 11.4 lb/in |
|---|---|
| Maximum Shock (unloaded) | 10,000 g |
| Material | Stainless steel |
| Weight | 32 grams |
The sensor can withstand up to 10,000 g of shock when unloaded.
The sensor housing is made of stainless steel.
Each sensor weighs 32 grams.
