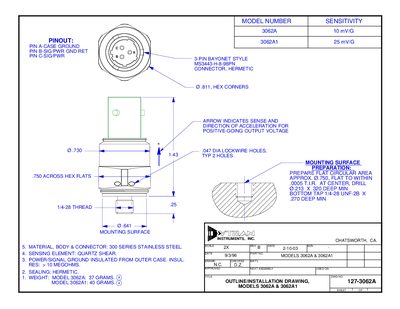

This document is an introduction to the 3062A accelerometer model. It mainly includes information about the product's size, weight, packaging, and connector.
The Dytran 3062A is a hermetically sealed quartz‑shear accelerometer housed in a 300 series stainless‑steel body. It features a 3‑pin bayonet‑style hermetic connector (MS3443‑H‑8‑98PN) and provides a high‑sensitivity output for vibration measurement.
The device weighs 37 g, measures .750 in × 1.4 in (hex × height), and includes a 1/4‑28 × 0.250 in integral stud for mounting. Electrical isolation is provided between the signal ground (Pin B) and the case, with a nominal bias voltage of +8 V and a typical output impedance.
| Weight | 37 grams |
|---|---|
| Size (hex × height) | .750 in × 1.4 in |
| Mounting provision | 1/4‑28 × 0.250 in integral stud |
| Connector | Hermetic 3‑pin MS3443‑H‑8‑98PN |
| Housing material | 300 Series stainless steel |
| Sensing element | Quartz shear |
| Sensitivity (3062A) | 10 mW/G |
| Bias voltage (nominal) | +8 V |
| Electrical isolation | Ground (Pin B) to case |
The 3062A model weighs 37 grams.
It uses a hermetic 3‑pin MS3443‑H‑8‑98PN connector.
The 3062A has a sensitivity of 10 mW per G.
The nominal bias voltage is +8 V.
