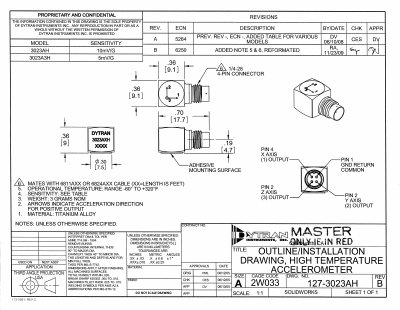

Technical specifications of the 3023AH triaxial accelerometer, including weight, size, mounting method, connector, material, performance, frequency response, electrical noise, linearity, signal polarity, environment, maximum vibration, maximum impact, temperature range, environmental sealing, thermal sensitivity, power supply current range, power supply voltage range, output impedance, output bias voltage, discharge time constant, ground isolation
The 3023AH is a tri‑axial accelerometer designed for high‑performance vibration and shock measurement. It features a compact titanium‑alloy housing with an adhesive 4‑pin mount and is compatible with Dytran cable assemblies.
Key specifications include a sensitivity of 10 mV/G (±500 G full scale), frequency response from 1.5 Hz to 10 kHz, a natural frequency of 40 kHz, and a temperature operating range of –60 °F to +320 °F. Electrical requirements are a supply voltage of +18 V to +30 VDC per axis and a typical output impedance of 100 Ω.
| Weight | 3.0 grams |
|---|---|
| Dimensions (H×W×D) | 0.36 × 0.36 × 0.36 inches |
| Mounting connector | 4‑pin adhesive mount |
| Frequency response | 1.5 Hz to 10 kHz |
| Natural frequency | 40 kHz |
| Electrical noise | 0.007 G RMS |
| Temperature range | -60 °F to +320 °F |
| Maximum vibration | ±600 G |
| Maximum shock | 5000 G |
| Supply voltage | +18 V to +30 VDC per axis |
| Output impedance | 100 Ω (typ.) |
| Output bias voltage | +10 VDC (nominal) |
It operates from –60 °F up to +320 °F.
Each axis requires a supply voltage between +18 V and +30 VDC.
