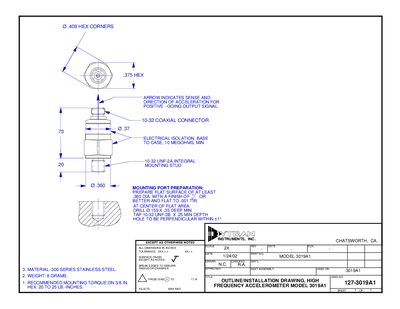

This file is a drawing and description of the high frequency accelerometer 3019A1-2, including information such as the product size, weight, connector, material, etc.
The Dytran 3019A and 3019A1 are compact frequency accelerometers housed in 300‑Series stainless steel. The manual provides mounting instructions, electrical isolation details, and performance specifications for accurate vibration measurement.
Key sections include physical dimensions, mounting torque, connector types, sensitivity, frequency range, resonant frequency, and environmental limits, enabling proper installation and reliable operation in harsh conditions.
| Weight | 8.0 Grams |
|---|---|
| Size (Hex x Height) | 0.375 x 0.73 Inches |
| Sensitivity | 10.0 mV/G |
| Frequency Range | 1.0 to 10,000 Hz |
| Resonant Frequency | 50 kHz |
| Output Impedance | 100 Ohms (typ.) |
| Temperature Range | -60 to +300 °C |
| Recommended Mounting Torque | 20–25 lb‑in |
| Electrical Isolation | ≥10 MΩ |
The recommended mounting torque is 20 to 25 lb‑in on the 3/8‑in. hex mounting stud.
The device provides at least 10 MΩ electrical isolation between the case ground and the mounting surface.
The nominal resonant frequency is 50 kHz.
