3053B1 triaxial accelerometer specifications including weight, size, connector, material, performance, environment, etc.

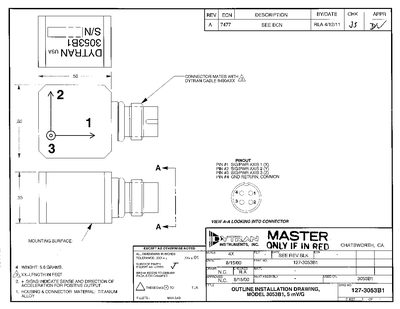

This document provides an outline drawing and installation details for the Dytran 3053B1 triaxial accelerometer, including connector pinout, mounting method, physical dimensions, and material information. It shows the 4‑pin connector layout and notes that the housing and connector are made of titanium alloy.
The sheet also lists the key performance and environmental specifications such as sensitivity, full‑scale range, frequency response, vibration and shock limits, temperature range, and electrical characteristics like supply voltage, current, output impedance, and bias voltage.
| Weight | 6.0 grams |
|---|---|
| Size (H×W×D) | 0.35 × 0.50 × 0.50 inches |
| Mounting | Adhesive mount |
| Connector | 4‑pin |
| Housing/Connector material | Titanium alloy |
| Sensitivity | 5.0 mV/G |
| Full‑scale range (each axis) | ±1000 G |
| Frequency response | 2 to 5000 Hz |
| Maximum vibration | ±600 G |
| Maximum shock | 5000 G |
| Temperature range | -60 to +250 °C |
| Supply voltage range (each axis) | +18 to +30 VDC |
| Supply current range (each axis) | 2 to 20 mA |
| Output impedance | 100 Ω (typ.) |
| Output bias voltage | +10 VDC |
| Discharge time constant | 0.5 s |
| Ground isolation | ≥10 MΩ |
The device uses a 4‑pin connector: pin 1 is signal/power for axis 1, pin 2 for axis 2, pin 3 for axis 3, and pin 4 is the ground return.
It can withstand up to ±600 G vibration, 5000 G shock, and operates from –60 °C to +250 °C with a hermetic seal.
The sensor has a sensitivity of 5.0 mV/G (±10 % at 100 Hz) and a full‑scale range of ±1000 G per axis.
