The document provides information on the installation method, technical specifications, and features of a triaxial accelerometer with the model number 3093B1.

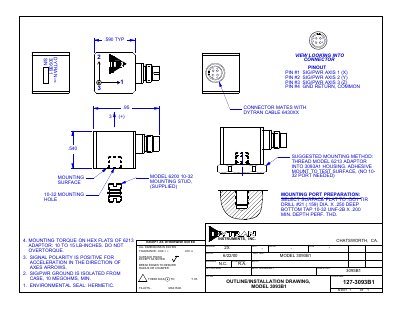

The Dytran 3093B1 is a hermetically sealed tri‑axial accelerometer designed for high‑g applications. The manual includes installation instructions, connector pinout, and detailed mechanical dimensions.
Key performance figures include a sensitivity of 100 mV/G, a full‑scale range of ±50 G per axis, frequency response from 2 Hz to 5 kHz, and a temperature operating range of –60 °F to +250 °F. Electrical characteristics such as supply voltage (+18 to +30 VDC), supply current (2‑20 mA), and output impedance (100 Ω) are also listed.
| Physical weight | 13.5 grams |
|---|---|
| Size (H × W × D) | 0.54 × 0.59 × 0.59 inches |
| Mounting stud | 10‑32 |
| Full‑scale range | ±50 G per axis |
| Frequency response | 2 Hz to 5 kHz (±10%) |
| Supply voltage (each axis) | +18 to +30 VDC |
| Output impedance | 100 Ω (typ.) |
Each axis requires a supply voltage between +18 VDC and +30 VDC.
The accelerometer has a frequency response of 2 Hz to 5 kHz with ±10% tolerance.
