The 3133A1 accelerometer has an ultra miniature size, high sensitivity, and ideal low frequency response.

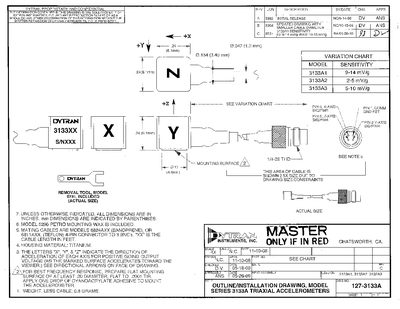

This outline/installation drawing provides the mechanical layout, dimensions, mounting surface requirements, and connector details for the Dytran 3133A series triaxial accelerometers. It includes recommended mounting adhesive, removal tool, and cable options.
The document also lists key performance specifications such as sensitivity, frequency range, noise floor, operating temperature, and power requirements, along with supplied accessories and calibration information.
| Weight | 0.03 oz (0.8 g) |
|---|---|
| Width | 0.24 in (6.1 mm) |
| Height | 0.24 in (6.1 mm) |
| Housing Material | Titanium |
| Connector Type | 4‑pin |
| Compliance Voltage | +18 to +30 VDC |
| Current Range | 2 to 20 mA |
| Frequency Range (Axis 1 & 2) | 0.25 to 7 000 Hz |
| Resonance Frequency | >35 kHz |
| Noise Floor | 0.02 m/s² rms |
| Operating Temperature | -60 °F to +250 °F |
Prepare a flat mounting surface of at least 0.20 in diameter, flat to 0.0001 in.
The housing is made of titanium.
Use a compliance voltage of +18 to +30 VDC with a current limit of up to 20 mA (2‑20 mA range).
Supplied accessories include mounting adhesive (model 6298 petro wax), a removal tool (model 6741), and an ISO 17025 calibration certificate.
