The 3273A2 accelerometer weighs only 2.7 grams and features ultra-low frequency response and ultra-low noise level.

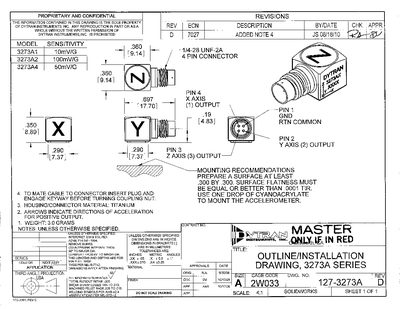

This document provides the outline and installation drawing for the Dytran 3273A triaxial IEPE accelerometer, including mechanical dimensions, mounting recommendations, and connector details.
It also lists key performance specifications such as sensitivity, frequency range, supply current, and environmental limits.
| Sensitivity (3273A2) | 100 mV/g |
|---|---|
| Sensitivity (3273A4) | 50 mV/g |
| Weight | 3.0 grams |
| Operating Temperature | -60 to +165 °F |
| Mounting Surface Flatness | ≤ 0.0001 in |
| Acceleration Range | +150 Gpeak |
The surface flatness must be equal to or better than 0.0001 in.
The 3273A2 model has a sensitivity of 100 mV/g.
It operates from –60 °F to +165 °F.
