This document is the product manual of 3333A1 accelerometer. It introduces the model, product range, weight, size, connector type, material, isolation, sensing element material, mode, performance, sensitivity, acceleration range, frequency range, resonant frequency, linearity, transverse sensitivity maximum, noise floor and other characteristics of the product.

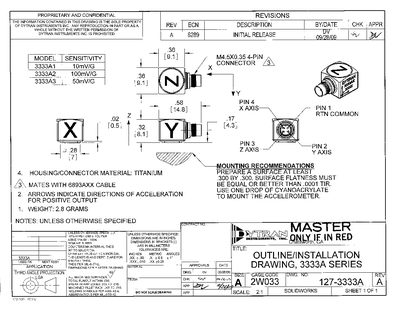

This document provides a detailed outline and installation drawing for the Dytran 127-3333A triaxial IEPE accelerometer. It lists model variants (3333A1, 3333A2, 3333A3) with their sensitivities, shows the mechanical layout, and gives mounting recommendations such as using a drop of cyanoacrylate and a titanium housing.
Performance specifications are included, covering weight, housing material, connector type, operating temperature range, supply current, and environmental limits such as shock and vibration. The drawing follows ASME Y14.5M‑1994 tolerancing and includes material and finish notes for machining.
| Sensitivity (3333A1) | 10 mV/g |
|---|---|
| Sensitivity (3333A2) | 100 mV/g |
| Sensitivity (3333A3) | 50 mV/g |
| Weight | 2.3 grams (0.08 oz) |
| Housing material | Ti‑6 Al‑4V (titanium) |
| Connector type | 4‑pin |
| Operating temperature range | -60 °F to +250 °F |
| Shock rating | 5000 g pk |
| Vibration rating | 3000 g pk |
Apply one drop of cyanoacrylate to mount the accelerometer.
The housing and connector are made of titanium (Ti‑6 Al‑4V).
Sensitivity options are 10 mV/g for 3333A1, 100 mV/g for 3333A2, and 50 mV/g for 3333A3.
The accelerometer weighs 2.3 grams (0.08 oz).
