The 3273M2 series of accelerometers are Dytran's low frequency performance products, with ultra-low noise levels and ultra-low frequency response.
This document provides the outline and installation drawing for the Dytran 127-3273M2 tri‑axial accelerometer, including mounting recommendations, connector details, and material specifications. It also lists the performance specifications such as sensitivity, frequency range, and environmental limits.

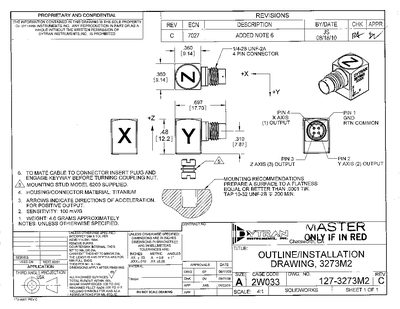

The drawing shows the required surface flatness, mounting stud model, and connector type, while the specification table gives key electrical and mechanical parameters needed for proper integration into a measurement system.
| Weight | 4.0 grams |
|---|---|
| Sensitivity | 100 mV/g |
| Acceleration Range | +450 Gpeak |
| Frequency Range | 0.88 – 5000 Hz |
| Resonance Frequency | >24 kHz |
| Output Impedance | 100 Ω |
| Supply Current | 2 to 20 mA |
| Operating Temperature | -60 to +195 °F |
| Shock Max | 3000 Gpk |
| Vibration Max | 3000 Gpk |
The sensitivity is 100 mV per g.
Mounting stud model 6200 is supplied.
The surface must be flat to .0001" or better.
The device draws 2 to 20 mA.
