This document is the performance specification of PS3263M9 triaxial accelerometer, including measurement range, resolution, operating temperature range, linearity, resonant frequency etc.

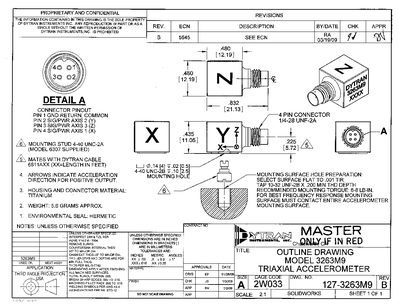

This drawing provides the mechanical and electrical installation information for the Dytran 3263M9 tri‑axial IEPE accelerometer. It includes a connector pinout diagram, recommended mounting torque, and surface preparation guidelines.
Key performance data are listed, such as sensitivity, frequency range, temperature limits, and environmental sealing. The document also specifies material construction, weight, and maximum vibration and shock ratings.
| Weight | 5.6 grams |
|---|---|
| Frequency Range | 0.4 to 7000 Hz |
| Resonant Frequency | >24 kHz |
| Supply Current | 2 to 20 mA |
| Compliance Voltage Range | +18 to +30 V |
| Temperature Range | -60 to +180 °F |
| Environmental Seal | Hermetic |
| Body Material | Titanium |
| Sensing Element Material | Ceramic |
| Maximum Vibration | 600 g pk |
| Maximum Shock | 5000 g pk |
Pin 1 is GND return/common, Pin 2 is signal/power for Axis 2 (Y), Pin 3 is signal/power for Axis 3 (Z), and Pin 4 is signal/power for Axis 1 (X).
A torque of 6–8 lb‑in is recommended for mounting the device.
The sensor draws between 2 mA and 20 mA of supply current.
It operates from –60 °F to +180 °F (‑51 °C to +82 °C).
