This document is a brief introduction to DYTRAN 3093M4, including the product's features and specifications.

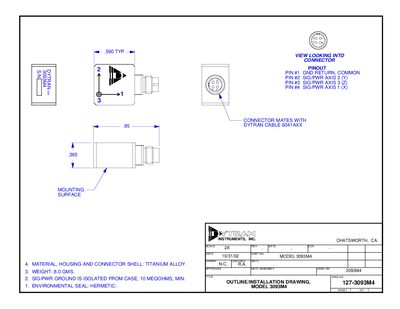

The Dytran 3093M4 is a titanium‑alloy housed triaxial accelerometer designed for high‑g measurements. It features a hermetic seal, four‑pin connector compatible with Dytran cable 6041AXX, and adhesive mounting.
The document lists the device’s electrical and mechanical specifications, including range, sensitivity, frequency response, noise, and environmental limits, as well as supply requirements and grounding isolation details.
| Range (full scale) per axis | +100 G |
|---|---|
| Sensitivity | 50 mV/G |
| Frequency response | 2 to 5000 Hz |
| Natural frequency | 30 kHz |
| Discharge time constant | 0.5 s |
| Equivalent electrical noise | 0.07 G RMS |
| Linearity | 1 %FS |
| Transverse sensitivity (max) | 5 % |
| Output bias voltage | +10 VDC |
| Output impedance | 100 Ω |
| Temperature range | -60 to +250 °C |
| Maximum vibration | ±100 G |
| Maximum shock | 500 G |
| Size (H × W × D) | 0.37 × 0.59 × 0.59 inches |
| Weight | 10.0 g |
| Connector type | 4‑pin |
| Supply current range per axis | 2 to 20 mA |
| Supply voltage range per axis | +18 to +30 VDC |
| Ground isolation | 10 MΩ min |
Each axis requires a supply voltage between +18 VDC and +30 VDC.
The device can withstand up to 500 G of shock.
The housing and connector shell are made of titanium alloy.
