Performance specification of 3093M18 triaxial accelerometer, including weight, connector type, supply temperature range, resolution, sensitivity, frequency range, resonant frequency, linearity, etc.

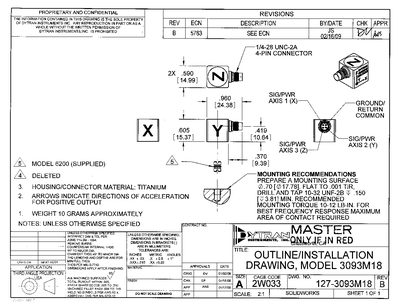

This document provides the outline and installation drawing for the Dytran 3093M18 accelerometer, including mounting recommendations, dimensions, tolerances, and material specifications. It details the required drilling, tapping, and torque (10‑12 lb‑in) for optimal frequency response and includes notes on surface preparation and machining standards.
The second page lists the performance specifications of the device: weight, connector type, housing material, sensitivity, acceleration range, frequency range, resonance frequency, linearity, noise floor, electrical supply limits, and environmental limits. Accessories such as the Model 6200 mounting stud and an ISO‑17025 calibration certificate are also noted.
| Connector Type | 4‑pin, 1/4‑28 glass‑to‑metal seal |
|---|---|
| Housing Material | Ti‑6 Al‑4V |
| Acceleration Range | 500 G peak |
| Frequency Range | 0.7‑5000 Hz |
| Noise Floor (100 Hz) | 0.006 g rms |
| Supply Current Range | 2‑20 mA |
| Compliance Voltage Range | +18 to +30 VDC |
| Output Bias Voltage | 11‑13 VDC |
| Discharge Time Constant | 0.4‑0.7 s |
| Operating Temperature Range | -60 °F to +250 °F |
A mounting torque of 10‑12 lb‑in is recommended for best frequency response.
It uses a 4‑pin, 1/4‑28 glass‑to‑metal seal connector that mates with Dytran cable models 6811AXX or 6824AXX.
The device can operate from –60 °F to +250 °F.
