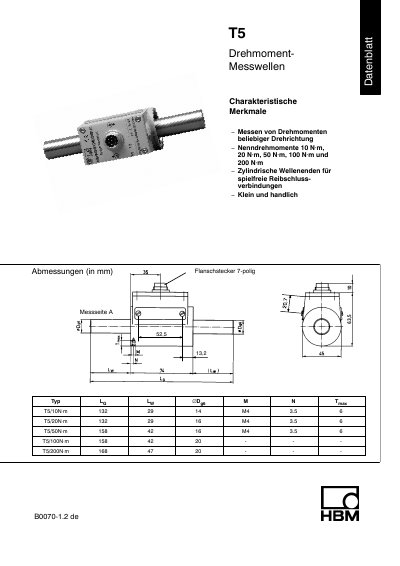

This document describes the features and characteristics of the LG LW ∅Dg6 M N T5 series, including its ability to measure torque in any direction, different rated torque ranges, cylindrical shaft ends for backlash-free frictional connections, and compact and portable design.
The HBM T5 is a compact torque measurement shaft designed for measuring torques in any direction. It features cylindrical shaft ends for play-free friction-fit connections and is available in nominal torque ratings of 10 Nm, 20 Nm, 50 Nm, 100 Nm, and 200 Nm. The device is small and handy, with specific dimensions provided for each model variant. This manual is written in German.
| Nominal Torque | 10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm |
|---|---|
| Accuracy Class | 01 |
| Nominal Output Signal | 2 mV/V |
| Linearity Deviation | < +0.14 % |
| Max. Supply Voltage | 20 V |
| Operating Temperature Range | -10...+60 °C |
| Max. Allowable Speed | 4000 min-1 |
| Protection Class | IP50 |
The maximum allowable speed is 4000 min-1.
The reference temperature is +23 °C.
The maximum permissible supply voltage is 20 V.
