This data sheet mainly introduces the product features, technical specifications, and external dimensions of the Clip IG series industrial measurement amplifiers.

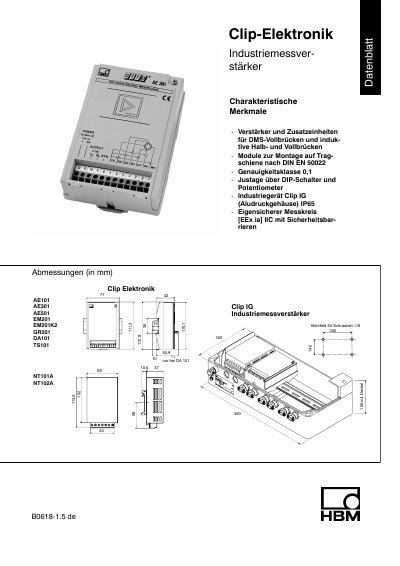

This document is a technical datasheet for the HBM AE101, AE301, and AE501 industrial measurement amplifiers. These devices are designed for mounting on DIN rails according to DIN EN 50022 and feature an accuracy class of 0.1. The amplifiers support both DMS full bridges and inductive half/full bridges with various excitation voltages. This manual is written in German.
| Accuracy Class | 0.1 |
|---|---|
| Mounting Standard | DIN EN 50022 |
| Protection Class | IP65 |
| Operating Temperature | -20...+60 °C |
| Supply Voltage (AE Series) | +15...30 V DC |
| Max Cable Length | 500 m |
| Carrier Frequency (AE501) | 4800 Hz |
The maximum permissible cable length is 500 meters.
The operating temperature range is from -20 to +60 degrees Celsius.
The maximum supply voltage is 30 volts DC.
