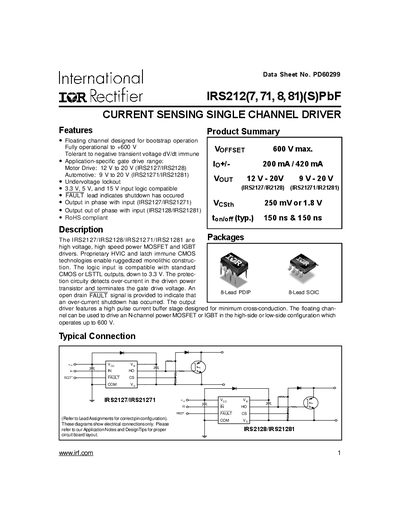

This datasheet introduces the features and characteristics of the IRS2127/IRS2128/IRS21271/IRS21281 high voltage, high speed power MOSFET and IGBT drivers. These products use proprietary HVIC and latch immune CMOS technologies to enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V. The protection circuitry detects over-current in the driven power transistor and terminates the gate drive voltage. An open drain FAULT signal is provided to indicate that an over-current shutdown has occurred. The output is in phase with input (IRS2127/IRS21271) or out of phase with input (IRS2128/IRS21281).
The IRS212 series (IRS2127, IRS2128, IRS21271, IRS21281) are high‑voltage, high‑speed power MOSFET and IGBT drivers featuring a floating channel for bootstrap operation and support up to 600 V. They provide logic‑compatible inputs (3.3 V‑15 V) and include fault detection for over‑current shutdown.
The datasheet details absolute maximum ratings, recommended operating conditions, dynamic electrical characteristics, functional block diagrams, lead definitions, and packaging information for both 8‑lead PDIP and 8‑lead SOIC formats. Mechanical dimensions for tape‑and‑reel handling and lead‑free part marking information are also provided.
| Maximum output offset voltage (VoFFSET) | 600 V max |
|---|---|
| Output voltage range (Vout) | 12 V‑20 V (Motor Drive), 9 V‑20 V (Automotive) |
| Floating supply voltage (VB) max | 625 V |
| Turn‑on propagation delay (typ.) | 150 ns |
| Turn‑off propagation delay (typ.) | 150 ns |
| Turn‑on rise time (typ.) | 80 ns |
| Turn‑off fall time (typ.) | 40 ns |
| Package types | 8‑Lead PDIP, 8‑Lead SOIC |
The maximum floating supply voltage is 625 V.
The typical turn‑on propagation delay is 150 ns.
The IRS212 is offered in 8‑Lead PDIP and 8‑Lead SOIC packages.
The output offset voltage is rated up to 600 V.
