4GBU series single phase full wave bridge rectifier has a maximum DC output current of 4A and an rms reverse voltage of 50/800V. It has glass passivated diodes, universal hole mounting, high surge current capacity, high insulation, lead free terminals and other features.

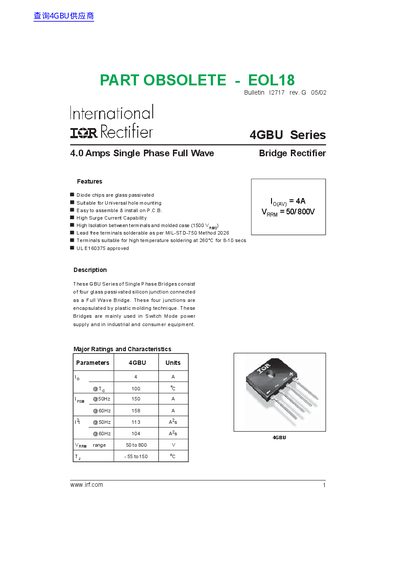

This bulletin describes the 4GBU Series single‑phase bridge rectifiers, highlighting their glass‑passivated silicon junctions, full‑wave configuration, and suitability for switch‑mode power supplies and industrial equipment. Key features include high surge current capability, 1500 V isolation, and lead‑free, solder‑able terminals.
The document lists detailed electrical ratings (forward current, reverse voltage, surge ratings), thermal and mechanical data (operating temperature range, thermal resistance, weight), and ordering information such as device codes, voltage codes, and physical dimensions. UL approval and compliance notes are also provided.
| Maximum DC output current | 4 A |
|---|---|
| Reverse voltage rating (repetitive peak) | 50 V to 800 V |
| Operating temperature range | -55 °C to 150 °C |
The device is rated for a maximum DC output current of 4 A.
It supports a repetitive peak reverse voltage from 50 V up to 800 V.
Yes, it is UL E160375 approved.
