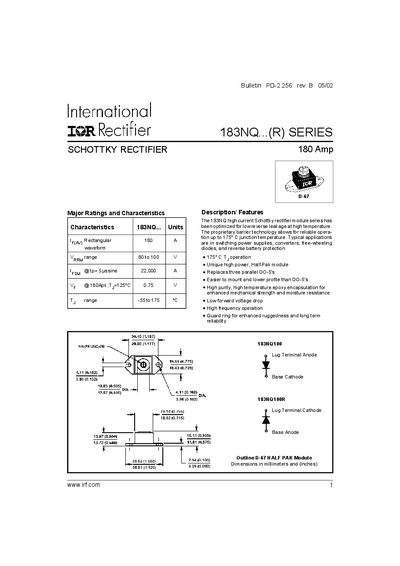

The 183NQ high current Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175° C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
The 183NQ series high‑current Schottky rectifier modules are optimized for low reverse leakage at high temperature and are suitable for switching power supplies, converters, free‑wheeling diodes and reverse‑battery protection. The proprietary barrier technology enables reliable operation up to 175 °C junction temperature.
Key specifications include a maximum average forward current of 180 A, reverse voltage ratings of 80 V to 100 V, forward voltage drop as low as 0.75 V at 125 °C, and a junction temperature range of –55 °C to 175 °C. Thermal resistance is 0.30 °C/W (junction‑to‑case) with a typical case resistance of 0.15 °C/W, and the half‑pak package weighs about 25.6 g.
| Maximum Average Forward Current | 180 A |
|---|---|
| Reverse Voltage (Vp Max) | 80 V – 100 V |
| Forward Voltage Drop @125 °C | 0.75 V |
| Reverse Leakage Current @25 °C | 45 mA |
| Junction Temperature Range | -55 °C to 175 °C |
| Weight | 25.6 g |
The series is rated for a maximum average forward current of 180 A.
The part numbers 183NQ080, 183NQ090 and 183NQ100 are rated for 80 V, 90 V and 100 V reverse voltage respectively.
They can operate from –55 °C up to 175 °C junction temperature.
Each module weighs approximately 25.6 g.
