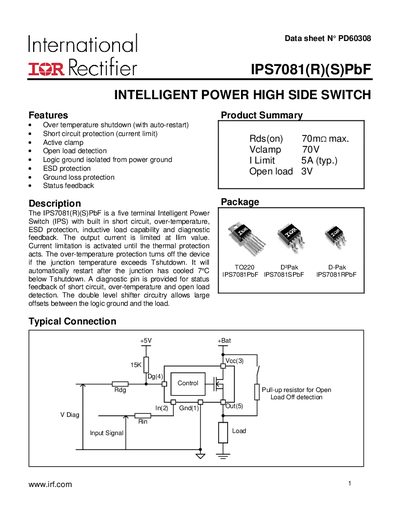

This document describes the features and functions of PD60308 IPS7081(R)(S)PbF Intelligent Power High Side Switch, including over temperature shutdown, short circuit protection, active clamp, open load detection, etc.
The IPS7081(R)(S)PbF is a five‑terminal Intelligent Power Switch offering built‑in over‑temperature shutdown, short‑circuit protection, ESD protection and diagnostic feedback. It supports up to 5 A continuous load current and includes an active clamp for inductive loads.
The document provides absolute maximum ratings, thermal characteristics, recommended operating conditions, static and switching electrical characteristics, and mechanical dimensions for D‑Pak and TO‑220 packages.
| Maximum output voltage (Vout) | Vec‑65 to Vcc+0.3 |
|---|---|
| On‑state resistance (Rds(on)) at 25 °C | 55 mΩ (typ.) |
| Operating voltage range (Vcc) | 6 V to 35 V |
| Thermal resistance junction‑to‑ambient (D‑Pak) | 70 °C/W |
The high‑threshold for over‑temperature shutdown is 150 °C.
Short‑circuit detection voltage is specified between 2 V and 4 V.
The device has five terminals.
Typical on‑state resistance at 25 °C is 55 mΩ.
