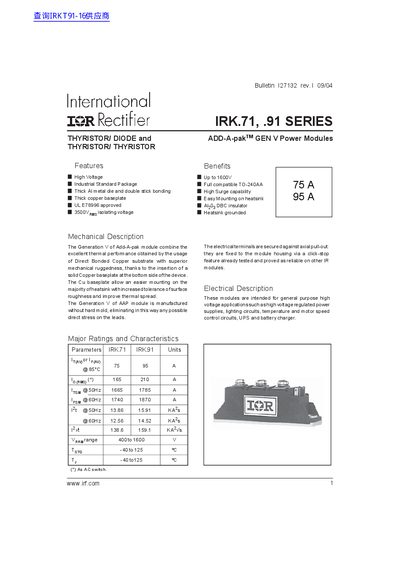

IRK.71, .91 series are IRF's ADD-A-pakTM GEN V power modules, which use thick aluminum metal dies and double-sided bonding, thick copper base plates, meet UL E78996 standard, with rated voltage 400-1600V and rated current 165-210A, with good thermal performance and mechanical strength.
The IRK.71 and IRK.91 series are Add‑A‑pak™ GEN V power modules designed for high‑voltage applications such as regulated power supplies, lighting, motor speed control, UPS and battery chargers. They feature a thick aluminum metal die, double‑side bonding, and a solid copper baseplate for improved thermal spread and easy mounting on heatsinks.
The modules support voltage ratings up to 1600 V, continuous on‑state currents up to 95 A, and operate over a temperature range of –40 °C to 125 °C. Detailed electrical, thermal, and mechanical specifications are provided, along with ordering information and optional hardware options.
| Maximum Voltage Rating | 1600 V |
|---|---|
| Continuous On‑State Current (Thyristor) | 95 A @ 25 °C |
| Peak Reverse Voltage (Diode) | 400 V – 1600 V |
| Gate Voltage (Maximum) | 4.0 V |
| Junction Temperature Range | -40 °C to 125 °C |
| Weight per Module | 110 g |
The modules are rated for up to 1600 V.
They operate from –40 °C to 125 °C.
The thyristor version can carry 95 A continuously at 25 °C.
The maximum gate voltage is 4.0 V.
