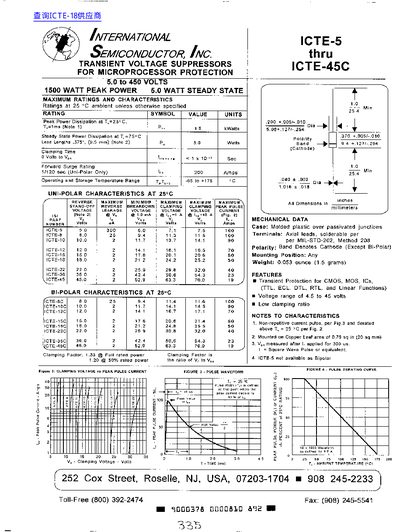

The ICTE series provides transient voltage protection for micro‑processor circuits, covering voltage ranges from 5 V to 45 V. The document lists maximum ratings, uni‑polar and bi‑polar characteristics, and mechanical dimensions for each part number.
Key specifications include peak and steady‑state power dissipation, clamping voltage, forward surge rating, and operating temperature range. Mechanical data such as case material, lead length, and mounting options are also provided, along with characteristic curves for clamping voltage versus pulse current and pulse‑derating.
| Peak Power Dissipation | 1500 W |
|---|---|
| Steady‑State Power Dissipation | 5.0 W |
| Forward Surge Rating | 1.0 A |
The series is rated for a peak power dissipation of 1500 W.
The steady‑state power dissipation is 5.0 W.
The forward surge rating is 1.0 A.
