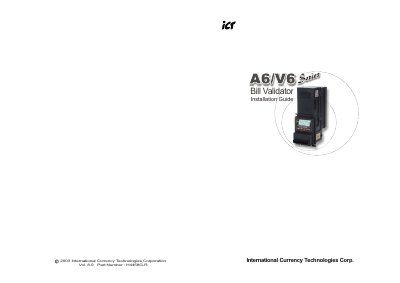

The A6/V6 series is a high‑security bill validator with four‑way bill insertion, auto‑calibration and multiple interface options. This guide provides an overview of the device, its features, and detailed installation steps.
It also includes wiring diagrams, DIP‑switch settings for different currencies, software download procedures, routine maintenance, and troubleshooting tips to keep the validator operating reliably.
| Processing time | Approx. 3 seconds |
|---|---|
| Power consumption | 50 watts maximum |
| Bill capacity | Approx. 300‑1000 bills |
| Operating temperature | 0°C ~ 55°C |
| Storage temperature | -30°C ~ 70°C |
| Humidity | 30% ~ 85% RH (no condensation) |
Press the side buttons, pull the unit out, and clean the bill path and sensors with a soft, dry cloth; do not use organic solvents such as gasoline or paint thinner.
A programmer (FP‑001) is required; contact ICT to purchase the programmer and follow the FP‑001 user guide for the download and upgrade process.
Two serial DIP switches on the side of the unit allow configuration for different currencies and interface settings; settings can be changed according to user needs.
Remove the bill box by sliding the top button, clear any foreign objects from the bill path and sensors, and then re‑insert the bill box.
