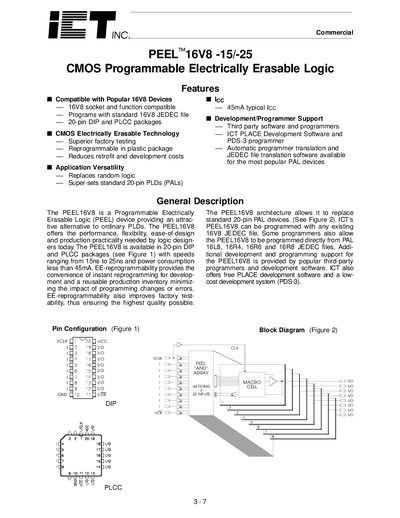

The PEEL16V8 is a Programmable Electrically Erasable Logic (PEEL) device providing an attractive alternative to ordinary PLDs. The PEEL16V8 offers the performance, flexibility, ease-of-design and production practicality needed by logic designers today. The PEEL16V8 is available in 20-pin DIP and PLCC packages with speeds ranging from 15ns to 25ns and power consumption less than 45mA. EE-reprogrammability provides the convenience of instant reprogramming for development and a reusable production inventory minimizing the impact of programming changes or errors. EE-reprogrammability also improves factory testability, thus ensuring the highest quality possible. The PEEL16V8 architecture allows it to replace standard 20-pin PAL devices. ICT’s PEEL16V8 can be programmed with any existing 16V8 JEDEC file. Some programmers also allow the PEEL16V8 to be programmed directly from PAL 16L8, 16R4, 16R6 and 16R8 JEDEC files. Additional development and programming support for the PEEL16V8 is provided by popular third-party programmers and development software. ICT also offers free PLACE development software and a low-cost development system (PDS-3).
The document describes the ICT PEEL16V8, a 20-pin DIP or PLCC package programmable logic device offering an alternative to standard PALs. It features CMOS technology with speeds ranging from 15ns to 25ns and typical power consumption of 45mA.
| Typical Icc | 45mA |
|---|---|
| Speeds | 15ns to 25ns |
| Packages | 20-pin DIP and PLCC |
| Inputs/Outputs | 16 inputs, 8 outputs |
Yes, it is compatible with popular 16V8 devices and programs with standard 16V8 JEDEC files.
Yes, it uses CMOS Electrically Erasable Technology and is reprogrammable in plastic packages.
