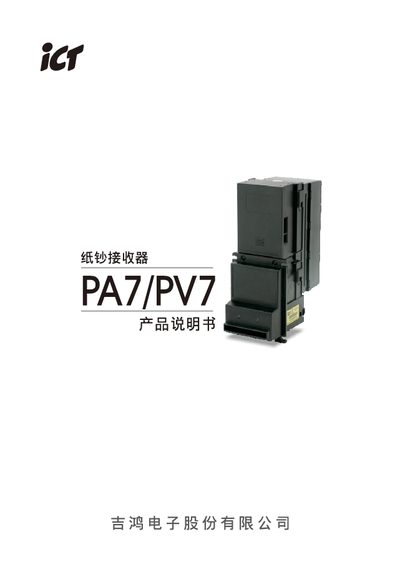

This manual introduces the PA7/PV7 series paper currency receivers, highlighting their high acceptance rate (96% or higher) and four‑sided bill acceptance. It lists the main interfaces (Pulse, ICT Protocol, NISR, MDB, USB) and basic specifications such as power requirements and environmental limits.
The document includes detailed installation guidance, cable wiring tables, function‑setting procedures, software download and update steps, maintenance recommendations, and a troubleshooting section with LED fault codes for both the front panel and rear unit. This manual is written in Chinese.
| Receiving rate | 96% or higher |
|---|---|
| Power supply (PA7) | 12V DC, 3 A |
| Power supply (PV7) | 34V DC (24‑45 V), 1.5 A |
| Operating temperature | 0 °C ~ 55 °C |
| Storage temperature | -30 °C ~ 70 °C |
| Humidity range | 30 % ~ 85 % RH (no condensation) |
| Bill capacity | 400‑800 bills (model dependent) |
The device accepts 96% or more of bills, excluding dirty, wet, damaged, or overly folded notes.
PA7 uses a 12 V DC supply up to 3 A, while PV7 uses a 34 V DC supply (24‑45 V range) up to 1.5 A, and both can operate from 117 VAC for certain functions.
Depending on the model, the receiver can hold about 400, 500, or 800 bills.
