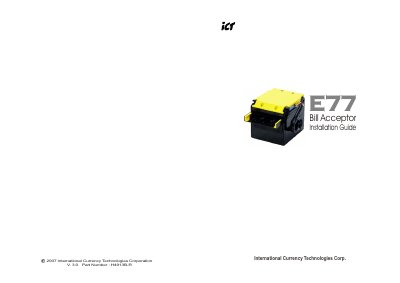

This guide provides step‑by‑step instructions for installing the E77 bill acceptor, including mechanical dimensions, wiring diagrams, and PIN assignments. It also explains the DIP‑switch settings required for different currencies and how to download and upgrade the firmware using the FP‑001 programmer.
Maintenance procedures, cleaning recommendations, and troubleshooting tips are included to help keep the unit operating reliably. Safety warnings and power specifications are also listed.
| Bill Acceptance Rate | 96% or greater |
|---|---|
| Stacking Time | Approx. 2 seconds |
| Bill Width Accepted | Approx. 77 mm |
| Standby Power Consumption | 0.35 A, 4.2 W (12 V) |
| Operating Power Consumption | 2.3 A, 27.6 W (12 V) |
| Maximum Power Consumption | 4 A, 48 W (12 V) |
| Operating Temperature | 0 °C ~ 55 °C |
| Storage Temperature | -20 °C ~ 70 °C |
| Humidity Range | 30 % ~ 85 % RH (no condensation) |
| Weight | Approx. 1.2 kg |
The unit draws 0.35 A at 12 V in standby, which equals about 4.2 W.
