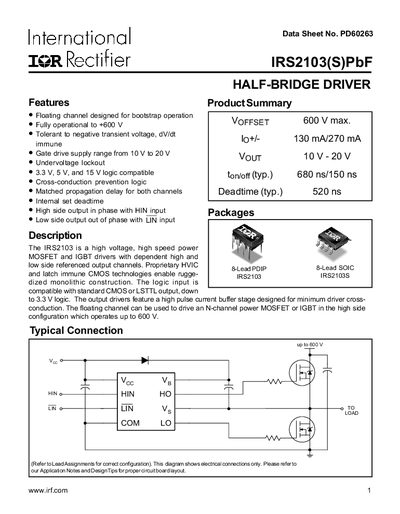

The document describes a half-bridge driver called IRS2103, which features a floating channel, high voltage operation, immunity to negative transient voltage, matched propagation delay, etc.
The IRS2103(S)PbF is a high‑voltage, high‑speed MOSFET/IGBT half‑bridge driver with floating high‑side and low‑side channels. It supports bootstrap operation, up to +600 V, and is compatible with 3.3 V, 5 V, and 15 V logic families.
The document lists absolute maximum ratings, recommended operating conditions, dynamic and static electrical characteristics, functional block diagrams, lead assignments, and timing diagrams. Package options include 8‑lead PDIP and 8‑lead SOIC, with detailed tape‑and‑reel dimensions for surface‑mount versions.
| Maximum high‑side floating voltage | 600 V |
|---|---|
| Gate‑drive supply range | 10 V to 20 V |
| Logic voltage compatibility | 3.3 V, 5 V, 15 V |
| Typical turn‑on propagation delay | 680 ns |
| Typical turn‑off propagation delay | 150 ns |
| Package options | 8‑lead PDIP, 8‑lead SOIC |
The high‑side floating channel is rated for up to 600 V.
The device is compatible with 3.3 V, 5 V, and 15 V logic families.
It is offered in an 8‑lead PDIP and an 8‑lead SOIC package.
Typical turn‑on propagation delay is 680 ns.
