The ZHB6790 SM‑8 bipolar transistor H‑bridge is a compact, low‑loss device designed for up to 40 V supply operation with a continuous rating of 2 A. It includes both NPN and PNP transistor pairs and is supplied in an 8‑lead SOT‑223 package.

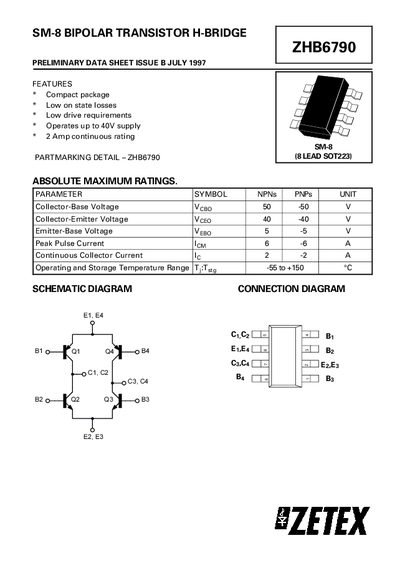

The handbook contains absolute maximum ratings, thermal characteristics, typical electrical parameters, safe operating area charts for full and minimal copper PCB layouts, and SPICE models for circuit simulation. Contact information for Zetex PLC and its global distributors is also provided.
| Collector‑Base Voltage (Veso) | 50 V (NPN) / -50 V (PNP) |
|---|---|
| Collector‑Emitter Voltage (Veceo) | 40 V (NPN) / -40 V (PNP) |
| Continuous Collector Current (Ic) | 2 A |
| Peak Pulse Current (Iom) | 6 A |
| Maximum Power Dissipation on Full Copper PCB | 2 W (DC) |
The device is rated for a collector‑emitter voltage of 40 V for NPN transistors and –40 V for PNP transistors.
It can continuously conduct up to 2 A.
On a full‑copper 50 mm × 50 mm PCB it can safely dissipate about 2 W under DC conditions.
