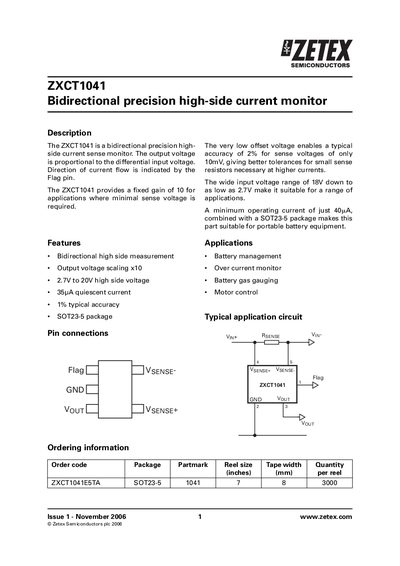

This document is an introduction to the datasheet of ZXCT1041.
The ZXCT1041 provides bidirectional high‑side current measurement with a fixed gain of 10 and a typical accuracy of 1%. It operates from 2.7 V to 20 V supply voltage and draws only 35 yA quiescent current, making it suitable for portable battery applications.
The device is supplied in a SOT23‑5 package, includes a Flag pin for direction indication, and offers a maximum junction temperature of 150 °C. Detailed electrical characteristics, absolute maximum ratings, and typical application circuits are provided in the datasheet.
| Gain | 10 (fixed) |
|---|---|
| Quiescent current | 35 yA |
| Typical accuracy | 1 % (typical) |
| Supply voltage range | 2.7 V to 20 V |
| Package | SOT23‑5 |
| Minimum operating current | 40 µA |
The device has a fixed gain of 10.
The quiescent current is 35 yA.
It is supplied in a SOT23‑5 surface‑mount package.
It operates from 2.7 V up to 20 V.
