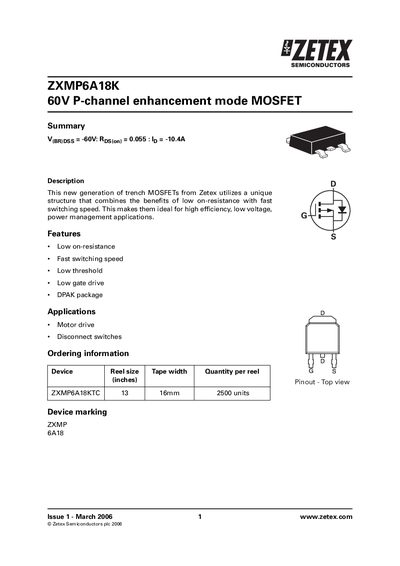

This is a ZXMP6A18K type of P-channel enhancement mode MOSFET produced by Zetex. It features low voltage, low resistance, high switching speed and is suitable for high efficiency, low voltage power management applications.
The ZXMP6A18K is a -60 V P‑channel enhancement mode MOSFET designed for high‑efficiency, low‑voltage power‑management applications. It features low on‑resistance, fast switching speed, low threshold and low gate‑drive requirements, and is supplied in a DPAK package.
The document lists absolute maximum ratings, detailed electrical characteristics such as drain‑source voltage, continuous drain current, on‑resistance, gate charge, and thermal resistance, as well as typical transfer and output curves and package dimensions.
| Drain‑source voltage (V_DSS) | -60 V |
|---|---|
| Gate‑source voltage (V_GSS) | +20 V |
| On‑resistance (R_DS(on)) | 0.055 Ω |
| Gate charge (Q_g) | 23 nC |
| Package type | DPAK |
| Junction‑to‑ambient thermal resistance | 29 °C/W |
The ZXMP6A18K is rated for a maximum drain‑source voltage of -60 V.
The typical on‑resistance is 0.055 Ω.
It is supplied in a DPAK surface‑mount package.
