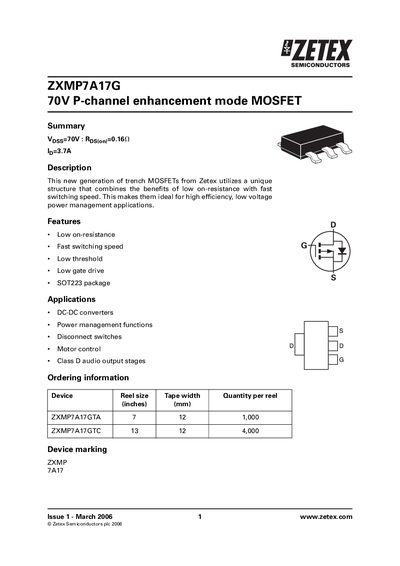

ZXMP7A17G is a 70V P-channel enhancement mode MOSFET with low on-resistance and fast switching speed, making it ideal for high efficiency, low voltage power management applications.
The ZXMP7A17G is a 70 V P‑channel enhancement mode MOSFET featuring low on‑resistance, fast switching, low threshold and low gate drive, packaged in a SOT‑223. It is intended for high‑efficiency, low‑voltage power‑management applications such as DC‑DC converters, disconnect switches, motor control and Class‑D audio stages.
The document lists absolute maximum ratings, electrical characteristics, typical performance curves, and package dimensions. Key parameters include drain‑source voltage, gate‑source voltage, continuous drain current, on‑resistance, capacitances, and switching times, all measured under defined test conditions.
| Drain‑source voltage (Vds) | -70 V |
|---|---|
| Gate‑source voltage (Vgs) | +20 V |
| Continuous drain current (Id) | 3.7 A |
| On‑resistance (Rds(on)) | 0.16 Ω |
| Input capacitance (Ciss) | 635 pF |
| Package | SOT‑223 |
The device can withstand a drain‑source voltage of up to -70 V.
The typical on‑resistance is 0.16 Ω.
