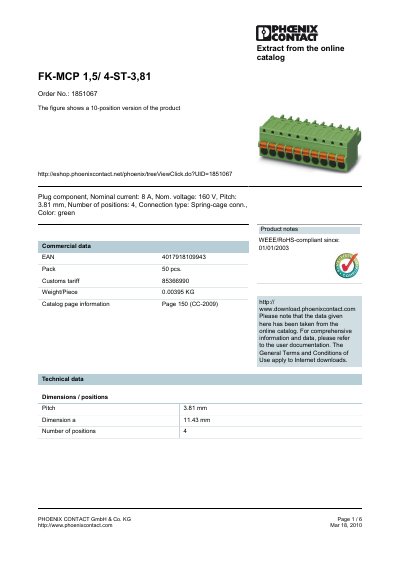

This document describes the features and characteristics of the FK-MCP 1,5/ 4-ST-3,81 plug component produced by Phoenix Contact GmbH & Co. KG, including technical data such as dimensions, voltage, and current.
The FK-MCP 1,5/4-ST-3,81 is a 4‑position plug component with a 3.81 mm pitch, designed for industrial automation applications. It supports a nominal current of 8 A and a nominal voltage of 160 V, making it suitable for a range of control and power circuits.
The datasheet provides detailed specifications such as surge voltage ratings, insulating material, conductor cross‑section limits, and certification approvals (CB, CSA, CUL, GOST, UL, VDE‑PZI). Additional accessories and related header products are listed, along with dimensional drawings and packaging information.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 4 |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated voltage (III/2) | 160 V |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Conductor cross‑section solid min. | 0.14 mm² |
| Conductor cross‑section solid max. | 1.5 mm² |
| AWG/kcmil min. | 26 |
| AWG/kcmil max. | 16 |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
| Weight per piece | 0.00395 kg |
| EAN | 4017918109943 |
The component is rated for a nominal current of 8 A.
It has a pitch of 3.81 mm.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
Each unit weighs 0.00395 kg.
