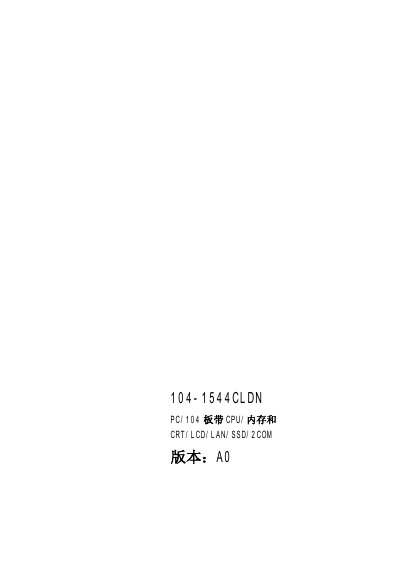

104-1544CLDN is a low-power embedded 586-level PC/104 structure industrial control board. It features a GX1+CS5530 chip design, compact structure, high reliability, and support for VGA, LCD, Ethernet controller.
The EVOC 104-1544CLDN is a low‑power, PC/104‑form factor industrial board featuring a GK+CS5530 chipset, NS GK 300 Mb CPU, up to 128 MB SDRAM, VGA/LCD output, Ethernet, USB, serial, parallel and PS/2 interfaces, and a watchdog timer.
The manual includes safety guidelines such as using anti‑static bags, grounding yourself before handling the board, wearing anti‑static gloves, disconnecting AC power before any insertion or removal, and waiting at least 30 seconds after power‑off before restarting. This manual is written in Chinese.
| Dimensions | 96 mm × 90 mm |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Operating Humidity | 59 % – 90 % non‑condensing |
| CPU | AD Gd 300Mtz CPU |
| Chipset | GK+CS5530 |
| Memory | 64 MB or 128 MB SDRAM |
| Ethernet | 10/100 Mbps Ethernet controller |
| USB Ports | 2 USB interfaces |
| Serial Ports | 2 serial ports (one supports RS‑232/422/485) |
| Video Output | VGA and LCD (STN, DSTN supported) |
| Watchdog Timer | Integrated watchdog timer |
Keep the board in an anti‑static bag, ground yourself for about 10 seconds before touching it, wear anti‑static gloves, and only touch the edges of the board.
