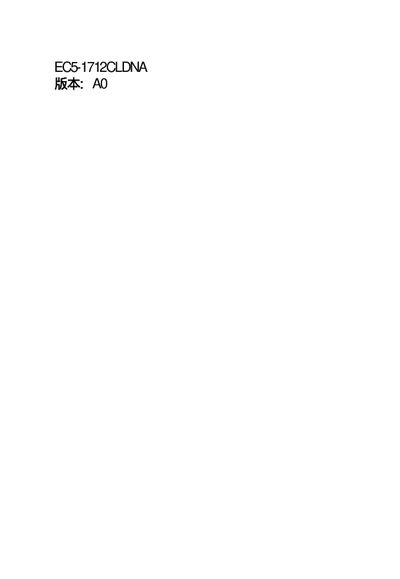

This document is a manual for EVOC products, which introduces the features and accessories of the EC5-1712CLDNA industrial-grade CPU card.
The EC5-1712CLDNA is an industrial‑grade CPU card built on the Intel 852GM chipset with a compact 203mm × 146mm form factor. It offers a Celeron‑M processor, up to 184 DDR266 memory, dual CRT/LVDS display, 100 Mbps Ethernet, AC'97 audio, multiple USB, IDE, CompactFlash, serial, parallel and Mini‑PCI interfaces, and a watchdog timer for reliable embedded applications.
The manual covers safety precautions such as using anti‑static bags and grounding, detailed installation procedures for the board and its memory, driver installation from the supplied CD, and configuration of peripherals like the watchdog timer. Appendices provide low‑level register programming examples for advanced users. This manual is written in Chinese.
| Chipset | Intel 852GM |
|---|---|
| Dimensions | 203 mm × 146 mm |
| Processor | Celeron‑M |
| Memory | Supports one 184 DDR266 module |
| Display | CRT + LVDS dual display |
| Network Interface | Intel 100 Mbps Ethernet |
| Audio Interface | AC'97 |
| USB Ports | Four USB 2.0 high‑speed ports |
| Serial Ports | Six serial ports (one RS‑422/RS‑485) |
| IDE Interface | 40‑pin standard AIA‑100 IDE |
| CompactFlash Slot | CompactFlash storage interface |
Store the board in an anti‑static bag, ground yourself before touching it, wear anti‑static gloves, handle only the edges, and disconnect AC power before any insertion or removal.
The card provides a CRT output and an LVDS output for dual‑display configurations.
The watchdog timer can reset the system or generate an interrupt if the software fails to refresh it within a set interval.
