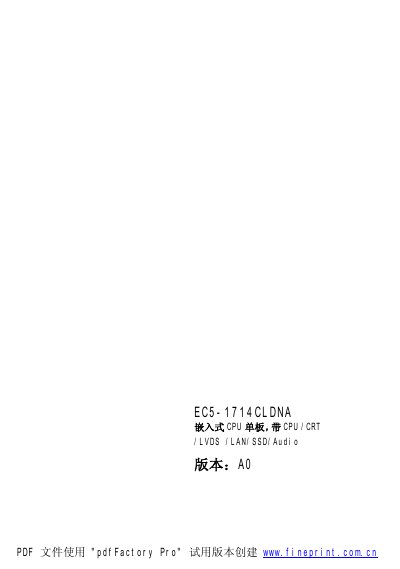

This is a user manual for EC5-1714CLDNA embedded CPU single board. It mainly introduces the features and characteristics of the product, ordering information, environmental and mechanical dimensions, microprocessor (CPU), chipset (CHIPSET), system memory (SYSTEM MEMORY), IDE function, USB function, display function, network function (LAN), audio (AUDIO) function, expansion bus, BIOS, DOC (electronic disk), CF card interface, WATCHDOG function, power saving features and other features.
The EC5-1714CLDNA is a compact 203 mm × 146 mm embedded CPU board featuring an Intel ULV Celeron‑M processor, Intel 852GM chipset, dual DDR266 memory slots (up to 1 GB), and a rich set of interfaces including USB, LAN, audio, video, IDE, CF, PCI and PC/104. It targets applications such as multimedia terminals, POS, monitoring, and industrial embedded systems.
This user manual covers safety precautions, unpacking checklist, detailed installation procedures, BIOS configuration, watchdog programming, I/O address mapping, IRQ assignment, and provides full technical specifications. It also includes an appendix with sample code for watchdog timer programming. This manual is written in Chinese.
| CPU | ULV Celeron‑M |
|---|---|
| Chipset | Intel 852GM + 82801DB |
| Memory | 2 DDR266 DIMM slots, up to 1 GB |
| USB Ports | 4 USB2.0 high‑speed ports |
| LAN | Intel 82562ET 100 Mbps Ethernet controller |
| Audio | Standard AC′97 audio codec |
| Display | CRT/LVDS/TV dual display, up to 64 MB shared video memory |
| Power Interfaces | AT and ATX connectors, ACPI and APM support |
| Dimensions | 203 mm × 146 mm (8"×5.75") |
| Operating Temperature | 0 °C to 60 °C |
The package contains the EC5-1714CLDNA motherboard, user manual, AMI BIOS guide, IDE cable, printer cable, keyboard/mouse adapter cable, USB adapter cable, audio cable, display cable, optional TV adapter cables, software CD, and spare jumpers.
It provides four USB2.0 high‑speed ports.
The board uses an Intel ULV Celeron‑M processor.
The board supports both AT and ATX power connectors and offers ACPI and APM power management modes.
