This is an industrial grade motherboard, with CRT/LCD/SSD/LAN/Audio/4Com function, supports a variety of interfaces, suitable for industrial applications

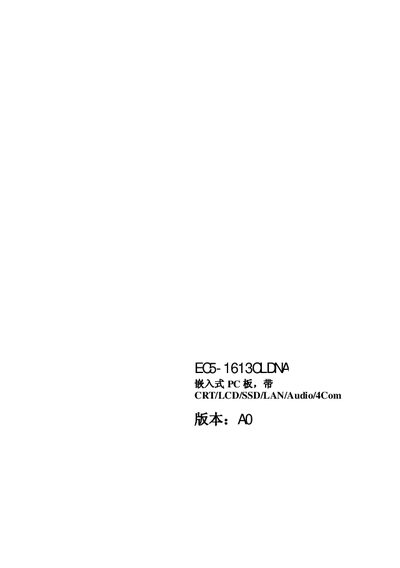

This manual provides an overview of the EVOC EC5-1613CLDNA industrial motherboard, including its hardware features, supported interfaces, and system specifications. It also contains safety instructions, installation procedures, BIOS configuration details, and programming examples for digital I/O.
The document is organized into sections such as product introduction, safety usage, ordering information, installation guide, functional overview, BIOS setup, and appendices covering digital I/O programming and hardware registers. This manual is written in Chinese.
| Operating Temperature | 0 °C to 60 °C |
|---|---|
| Operating Humidity | 5 % to 95 % RH, non‑condensing |
| Chipset | Intel 82443BX, 82371EB AGPset |
| Maximum Memory | 128 MB SDRAM (unbuffered) or 256 MB SDRAM (buffered) |
| USB Ports | Two standard USB 1.0 ports |
| Display Output | CRT and LCD dual‑display, up to 1280×1024@16 bpp or 1024×768@24 bpp |
| LAN Controller | Realtek PTK L8139D 10/100 Mb full‑duplex Ethernet |
It provides two standard USB 1.0 ports.
It supports up to 128 MB of unbuffered SDRAM or up to 256 MB of buffered SDRAM via a single DIMM slot.
