EC3-1711CLDNA 3.5 inch single board computer with CPU / LVDS / CRT / LAN / SSD / Audio is a single board computer product produced by EVOC Intelligent Technology Co., Ltd., which has CPU, chipset, system storage, IDE function, USB function, display function, network function, audio function, expansion bus, CF card, Watchdog function and other features.

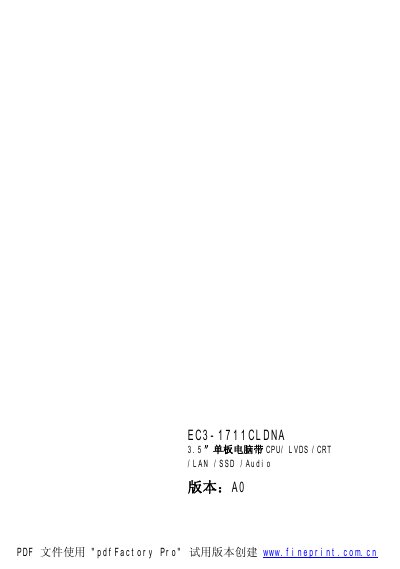

This manual introduces the EVOC EC3-1711CLDNA 3.5" single board computer, detailing its hardware features such as an Intel Celeron‑M CPU, dual CRT/LVDS display, Ethernet, USB, and various I/O interfaces. It also lists the supplied accessories and safety precautions for handling the board.
Subsequent sections cover installation procedures, BIOS configuration, watchdog programming, I/O address mapping, and IRQ assignment, providing the information needed for system integration and maintenance. This manual is written in Chinese.
| Chipset | Intel 852GM+ICH4 |
|---|---|
| System Memory | 1 DDR266 SO‑DIMM slot, up to 1 GB |
| IDE Interface | 40‑pin ATA‑100, supports 2 EIDE devices |
| USB Ports | 2 x USB 2.0 high‑speed |
| Display | CRT + LVDS dual display, up to 64 MB video memory |
| Network | 100 Mbps Ethernet controller |
| Audio | AC'97 audio codec |
| Dimensions | 146 mm × 102 mm |
| Operating Temperature | 0 °C – 60 °C |
The package contains one EC3-1711CLDNA motherboard, a user manual, an AMI BIOS setup guide, a parallel‑to‑USB cable, a serial‑to‑USB cable, a mini‑DIN to PS/2 keyboard/mouse cable, an audio cable, an IDE cable, and a CD with EVOC software and manuals.
The board supports a single DDR266 SO‑DIMM module up to 1 GB.
It supports both CRT and LVDS outputs simultaneously, sharing up to 64 MB of video memory.
