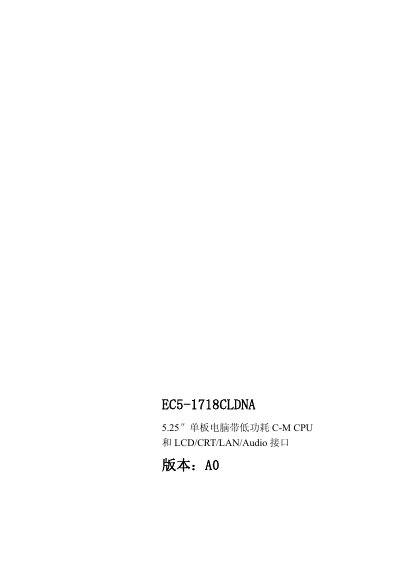

EC5-1718CLDNA is a full-power single-board computer developed on a 203mm×146mm size with the latest Intel laptop chipset 852GM. It features a low-power C-M CPU and LCD/CRT/LAN/Audio interfaces. The product includes EC5-1718CLDNA motherboard, user manual, AMI BIOS setup guide, EVOC software and user manual CD, as well as various cable wires. When using the product, it is important to follow the safety instructions. The product is characterized by its compact size, low power consumption, multiple interfaces, and easy installation.
This document introduces the EVOC EC5-1718CLDNA 5.25" single board computer, a low‑power ULV Celeron‑M based platform with integrated LCD/CRT/LAN/Audio interfaces. It covers product overview, ordering information, mechanical dimensions, and key hardware components.
Subsequent sections detail safe handling, installation procedures, BIOS functions, I/O port descriptions, watchdog programming, and address/interrupt mapping. Appendices provide programming examples and hardware tables for developers and system integrators. This manual is written in Chinese.
| Memory | 1 GB max, 200‑pin DDR 200/266 SO‑DIMM |
|---|---|
| IDE Interfaces | Two standard 44‑pin IDE connectors |
| Display Resolution (VGA) | Up to 1600×1200@85 Hz |
| LVDS Display Resolution | Up to 1600×1200@60 Hz |
| Ethernet Controller | RTL8139DL 10/100 Mbps |
| USB Ports | Six USB 2.0 ports |
| Audio Codec | Standard AC'97 audio chip |
| PCI Slots | Three 120‑pin PCI expansion slots |
| CompactFlash Support | Type I and Type II CF cards |
| Board Dimensions | 203 mm × 146 mm |
| Storage Temperature | -25 °C to 75 °C |
The board provides six USB 2.0 ports.
It uses an RTL8139DL 10/100 Mbps Ethernet controller.
The board supports up to 1 GB of DDR 200/266 SO‑DIMM memory.
The board measures 203 mm by 146 mm.
