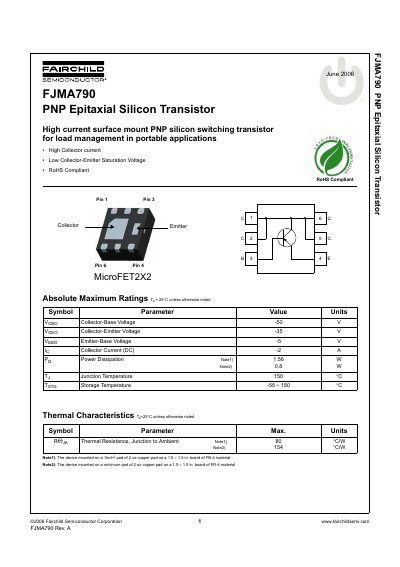

The FJMA790 is a PNP silicon transistor manufactured by Fairchild Semiconductor. It features high collector current and low collector-emitter saturation voltage, and is RoHS compliant.
The FJMA790 is a high‑current surface‑mount PNP silicon switching transistor designed for load management in portable applications. It offers a collector current of up to 2 A, low saturation voltage, and RoHS compliance.
The document provides absolute maximum ratings, electrical characteristics, typical performance curves, mechanical dimensions, and ordering information. It also includes product status definitions and trademark notices.
| Collector‑Base Voltage (VCBO) | -50 V |
|---|---|
| Collector‑Emitter Voltage (VCEO) | -35 V |
| Emitter‑Base Voltage (VEBO) | -5 V |
| Maximum Collector Current (IC) | -2 A |
| Junction Temperature (TJ) | 150 °C |
| Storage Temperature (TSTG) | -55 °C to 150 °C |
| Package Type | MicroFET2X2 MLP 2×2 |
| RoHS Compliance | Yes |
The maximum collector current is 2 A.
The collector‑emitter breakdown voltage is -35 V.
Yes, the device is RoHS compliant.
It uses a MicroFET2X2 2×2 surface‑mount package (MLP).
