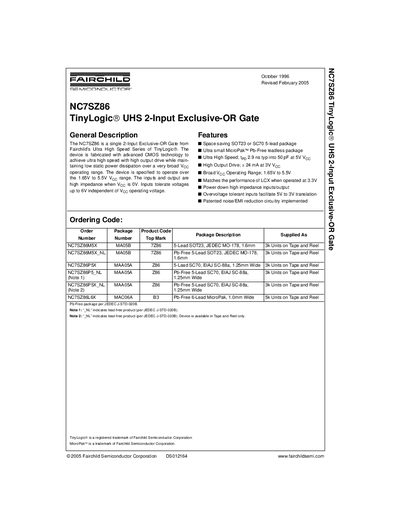

NC7SZ86 is a single 2-input Exclusive-OR Gate from Fairchild's Ultra High Speed Series of TinyLogic
The NC7SZ86 is a single 2‑Input Exclusive‑OR gate fabricated with advanced CMOS technology for ultra‑high speed operation and high output drive while maintaining low static power dissipation. It operates over a broad VCC range of 1.65 V to 5.5 V and tolerates input voltages up to 6 V.
The device is offered in space‑saving SOT23‑5 and SC70‑5 lead‑less MicroPak packages, with detailed electrical characteristics, absolute maximum ratings, and tape‑and‑reel handling specifications provided for designers.
| Operating VCC Range | 1.65 V to 5.5 V |
|---|---|
| Input Voltage Tolerance | up to 6 V independent of VCC |
| Typical Propagation Delay (tpp) | 2.9 ns typ into 50 pF at 5 V |
| High Output Drive | +24 mA at 3 V VCC |
The device is specified to operate over the 1.65 V to 5.5 V VCC range.
Typical propagation delay (tpp) is 2.9 ns into a 50 pF load at 5 V.
The device can source up to +24 mA at a 3 V supply.
