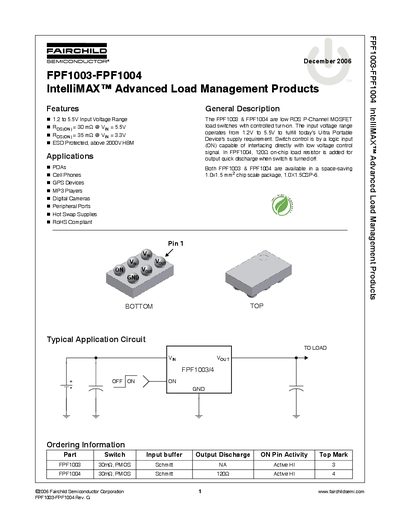

FPF1003-FPF1004 are low RDS P-Channel MOSFET load switches with controlled turn-on from Fairchild Semiconductor. The input voltage range operates from 1.2V to 5.5V to fulfill today's Ultra Portable Device's supply requirement. Switch control is by a logic input (ON) capable of interfacing directly with low voltage control signal. In FPF1004, 120Ω on-chip load resistor is added for output quick discharge when switch is turned off. Both FPF1003 & FPF1004 are available in a space-saving 1.0x1.5 mm2 chip scale package, 1.0X1.5CSP-6.
The FPF1003 and FPF1004 are low‑RDS(on) P‑channel MOSFET load switches designed for ultra‑portable devices. They operate from 1.2 V to 5.5 V and include optional on‑chip load resistors for quick discharge.
The document provides absolute maximum ratings, electrical characteristics, pin descriptions, typical application circuits, layout guidelines, and dimensional drawings for the 1.0 × 1.5 mm CSP package.
| Input voltage range | 1.2 V – 5.5 V |
|---|---|
| Maximum continuous switch current | 2.0 A |
| Operating temperature range | -40 °C – 125 °C |
| ESD protection (HBM) | 2000 V |
| On‑resistance (Ron) at 1.2 V | 95 – 150 mΩ |
The devices operate from 1.2 V to 5.5 V.
They can carry up to 2.0 A continuously.
At 1.2 V the on‑resistance is between 95 mΩ and 150 mΩ.
They are rated for 2000 V HBM ESD protection.
