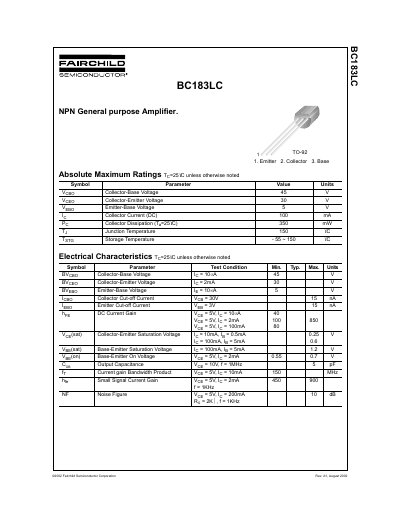

The Fairchild BC183LC is an NPN general‑purpose amplifier transistor presented in a TO‑92 package. The datasheet provides absolute maximum ratings, electrical characteristics, typical performance curves, and package dimensions.
Key sections include absolute maximum ratings, detailed electrical parameters such as collector‑base voltage and current gain, typical characteristic graphs, and mechanical dimensions. The document also contains trademark, disclaimer, and product status information.
| Collector‑Base Voltage (VCBO) | 45 V |
|---|---|
| Collector‑Emitter Voltage (VCEO) | 30 V |
| Emitter‑Base Voltage (VEBO) | 5 V |
| Collector Current (IC) | 100 mA |
| Collector Dissipation (PC) | 350 mW |
| Junction Temperature (TJ) | 150 °C |
| Storage Temperature (TSTG) | -55 ~ 150 °C |
| Package Type | TO‑92 |
| hFE (DC Current Gain) typical range | 40‑100 |
The maximum collector‑emitter voltage is 30 V.
The BC183LC is supplied in a TO‑92 package with dimensions of 0.46 ± 0.10 mm × 1.27 mm (typical).
The datasheet specifies a maximum collector current of 100 mA.
No. Fairchild states the device is not authorized for use in life‑support devices without written approval.
