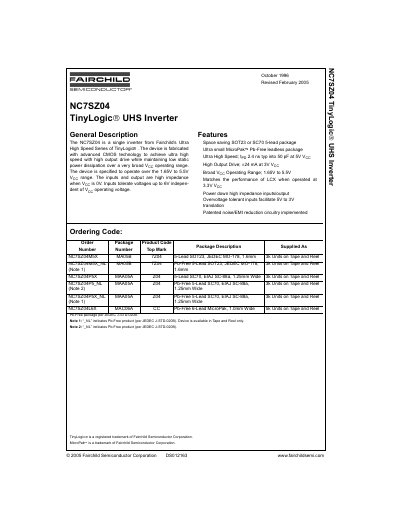

The NC7SZ04 is a single inverter from Fairchild's Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation. It operates over the 1.65V to 5.5V VCC range and has high impedance inputs and output when VCC is 0V. The inputs tolerate voltages up to 6V independent of VCC operating voltage. It features power down high impedance inputs/output, overvoltage tolerant inputs for 5V to 3V translation, and patented noise/EMI reduction circuitry.
The NC7SZ04 is a single inverter from Fairchild's Ultra High Speed TinyLogic /G163 series. It is fabricated with advanced CMOS technology to achieve ultra‑high speed, high output drive, and low static power dissipation over a very broad VCC operating range of 1.65 V to 5.5 V. Inputs and outputs are high‑impedance when VCC is 0 V, and inputs tolerate voltages up to 6 V independent of VCC.
The device is offered in three package options: a 5‑lead SOT23 (MA05B), a 5‑lead SC70 (MAA05A) and a 6‑lead MicroPak (MAC06A), all Pb‑free. Key electrical characteristics include a typical propagation delay of 2.0 ns, output drive up to 150 mA, and power dissipation of 200 mW (SOT23‑5) or 150 mW (SC70‑5). Detailed pin assignments, absolute maximum ratings, and tape‑and‑reel specifications are provided. This manual is written in Chinese.
| Supply Voltage (VCC) Range | 1.65 V to 5.5 V |
|---|---|
| Input Voltage (VIN) Range | 0 V to 5.5 V |
| Output Voltage (VOUT) Range | 0 V to VCC |
| Typical Propagation Delay (tPLH) | 2.0 ns (typ) at 1.65 V |
| Typical Propagation Delay (tPHL) | 2.0 ns (typ) at 1.65 V |
| Maximum Output Current (IOUT) | 150 mA |
| Power Dissipation (PD) | 200 mW (SOT23‑5), 150 mW (SC70‑5) |
| Input High Voltage (VIH) | 0.75 × VCC (typ) |
| Input Low Voltage (VIL) | 0.25 × VCC (typ) |
The device operates over a VCC range of 1.65 V to 5.5 V.
The datasheet specifies a maximum DC output current of 150 mA.
