FHP3130/FHP3230/FHP3430 are low-cost, high-performance, voltage feedback amplifiers that consume only 2.5mA of supply current per channel, while providing ±100mA of output current.
The FHP3130 (single), FHP3230 (dual) and FHP3430 (quad) are low‑cost, high‑performance voltage‑feedback amplifiers that operate from 2.7 V to 12 V supplies and deliver up to +100 mA output current. They feature rail‑to‑rail input and output, 110 V/µs slew rate, and low‑noise performance suitable for video and general‑purpose high‑speed applications.

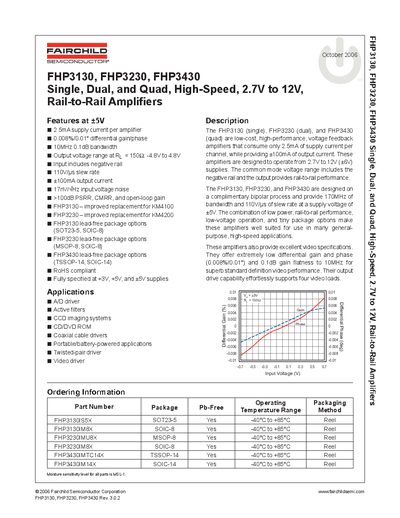

The datasheet provides detailed electrical characteristics, pin configurations for each package, absolute maximum ratings, mechanical dimensions, ordering information, and compliance notes such as RoHS certification.
| Supply voltage range | 2.7 V to 12 V |
|---|---|
| Supply current per amplifier | 2.5 mA |
| Output current | +100 mA |
| Slew rate | 110 V/µs |
| Gain‑bandwidth product | 60 MHz |
| Input voltage noise | 47 nV/√Hz |
| PSRR (DC) | 100 dB |
| CMRR (DC) | 95 dB |
The devices operate from 2.7 V up to 12 V.
Each amplifier can source up to +100 mA of output current.
Yes, the FHP3130, FHP3230 and FHP3430 are RoHS compliant.
The FHP3130 is offered in lead‑free SOT‑23‑5 and SOIC‑8 packages.
