This file is the characteristic parameters of 2N5366, including maximum operating voltage, maximum operating current, operating temperature range, etc.
The 2N5366 is a PNP general‑purpose amplifier transistor designed for collector currents up to 300 mA. It is supplied in a TO‑92 package and is intended for a wide range of amplification applications.

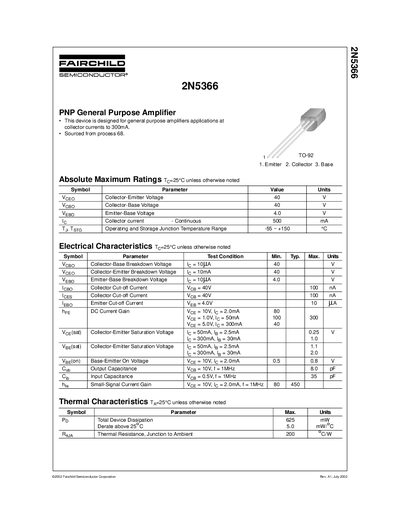

The datasheet lists absolute maximum ratings, detailed electrical characteristics such as voltage limits, current gain, and thermal parameters, as well as mechanical dimensions of the TO‑92 package. It also includes product status definitions and legal notices from Fairchild Semiconductor.
| Collector‑Emitter Voltage (VCEO) | 40 V |
|---|---|
| Collector‑Base Voltage (VCBO) | 40 V |
| Emitter‑Base Voltage (VEB) | 4.0 V |
| Continuous Collector Current (IC) | 500 mA |
| Operating Junction Temperature Range | -55 °C to +150 °C |
| DC Current Gain (hFE) typical | 100 |
| Total Device Dissipation (PD) | 625 mW |
| Thermal Resistance, Junction‑to‑Ambient (RθJA) | 200 °C/W |
The maximum collector‑emitter voltage is 40 V.
It can handle a continuous collector current of up to 500 mA.
No, Fairchild states the product is not authorized for use as a critical component in life‑support devices without written approval.
