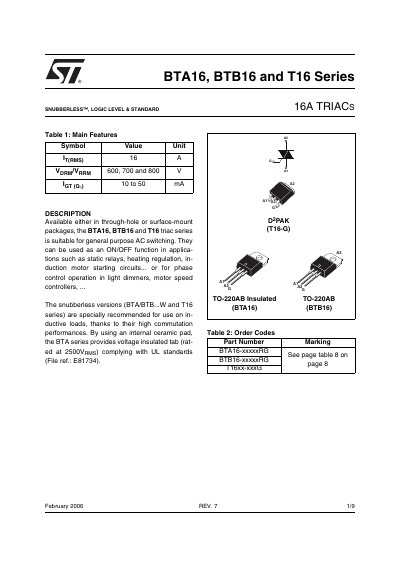

The BTA16, BTB16 and T16 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applica- tions such as static relays, heating regulation, in- duction motor starting circuits. or for phase control operation in light dimmers, motor speed controllers. The snubberless versions (BTA/BTB.W and T16 series) are specially recommended for use on in- ductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rat- ed at 2500VRMS) complying with UL standards (File ref.: E81734).
The BTA16, BTB16 and T16 triac series are general‑purpose AC switching devices suitable for static relays, heating regulation, induction‑motor starting, light dimmers and motor‑speed controllers. Both snubberless and logic‑level versions are offered, with an internal ceramic pad providing 2500 V RMS insulation.
The handbook lists electrical ratings such as 16 A RMS on‑state current, voltage ratings of 600 V, 700 V or 800 V, gate current 10‑50 mA, surge peak currents up to 160 A (50 Hz) or 168 A (60 Hz), and a dI/dt capability of 50 A/µs. Mechanical data for TO‑220AB and D2PAK packages, thermal resistance values, and ordering codes are also included.
| RMS on‑state current (IT(RMS)) | 16 A |
|---|---|
| Voltage rating (VDRM/VRRM) | 600 V, 700 V, 800 V |
| Gate current (IGT) | 10 to 50 mA |
The BTA16 series is offered with VDRM/VRRM ratings of 600 V, 700 V, and 800 V.
The series is rated for a RMS on‑state current of 16 A.
