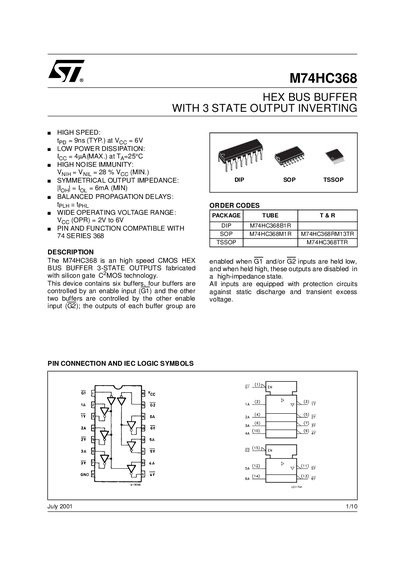

The M74HC368 is a high speed CMOS HEX BUS BUFFER 3-STATE OUTPUTS fabricated with silicon gate C2MOS technology. This device contains six buffers, four buffers are controlled by an enable input (G1) and the other two buffers are controlled by the other enable input (G2); the outputs of each buffer group are enabled when G1 and/or G2 inputs are held low, and when held high, these outputs are disabled in a high-impedance state. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
The M74HC368 is a high‑speed CMOS hex bus buffer with three‑state output and inverting capability. It contains six buffers, with two enable inputs (G1, G2) that control groups of four and two buffers respectively, and includes protection against static discharge and transient voltages.
The document details absolute maximum ratings, recommended operating conditions, DC and AC electrical specifications, capacitance data, test circuits, and mechanical dimensions for DIP‑16, SO‑16, and TSSOP‑16 packages. Legal disclaimer and copyright information are also included.
| Propagation delay (typ) | 9 ns at VCC = 6 V |
|---|---|
| Operating voltage range | 2 V to 6 V |
| Maximum power dissipation | 500 mW (at 65 °C) |
| High‑level input voltage | 2.0 V (typ) |
The device operates from 2 V to 6 V.
Typical propagation delay is 9 ns when VCC is 6 V.
Maximum power dissipation is 500 mW (at 65 °C).
The part is available in DIP‑16, SO‑16, and TSSOP‑16 packages.
